SIP Firewall

Security Level 1

• Automatic Dynamic Blocked: Depending on the Dynamic Firewall SIP configuration, Apolo will control all malicious and rejected packages by automatically blocking the client Src, Applicable to Sip Trunk or Register User for SBC.
• Automatic Event Blocked: Apolo analyzes all packets received and that were rejected by any method every 30 minutes, preventing any malicious transaction from being executed speedily.

Security Level 2

• USER AGENT BLOCKED: Each package can be analyzed by the User Agent, thus blocking all packages coming from it.

Security Level 3

• GEO - IP: Ability to handle Blacklist or Whitelist of any country considering the traffic interests of each client, the origin and destination.

Apolocore analyzes 100% of SIP packets in and out applying the security rules configured in the 3 level.
Consider that the priorities of the rules are:

• The highest hierarchy rule will be the IP rules (white list and black list). If you have spoken a country through Geoip and insert a whitelisted Ip, the prevailing rule is that of IP Firewall.
• If a User Agent is blocked, even if it is whitelisted the IP Apolocore will block by User agent received in the SIP packets.

Sip Firewall Configure

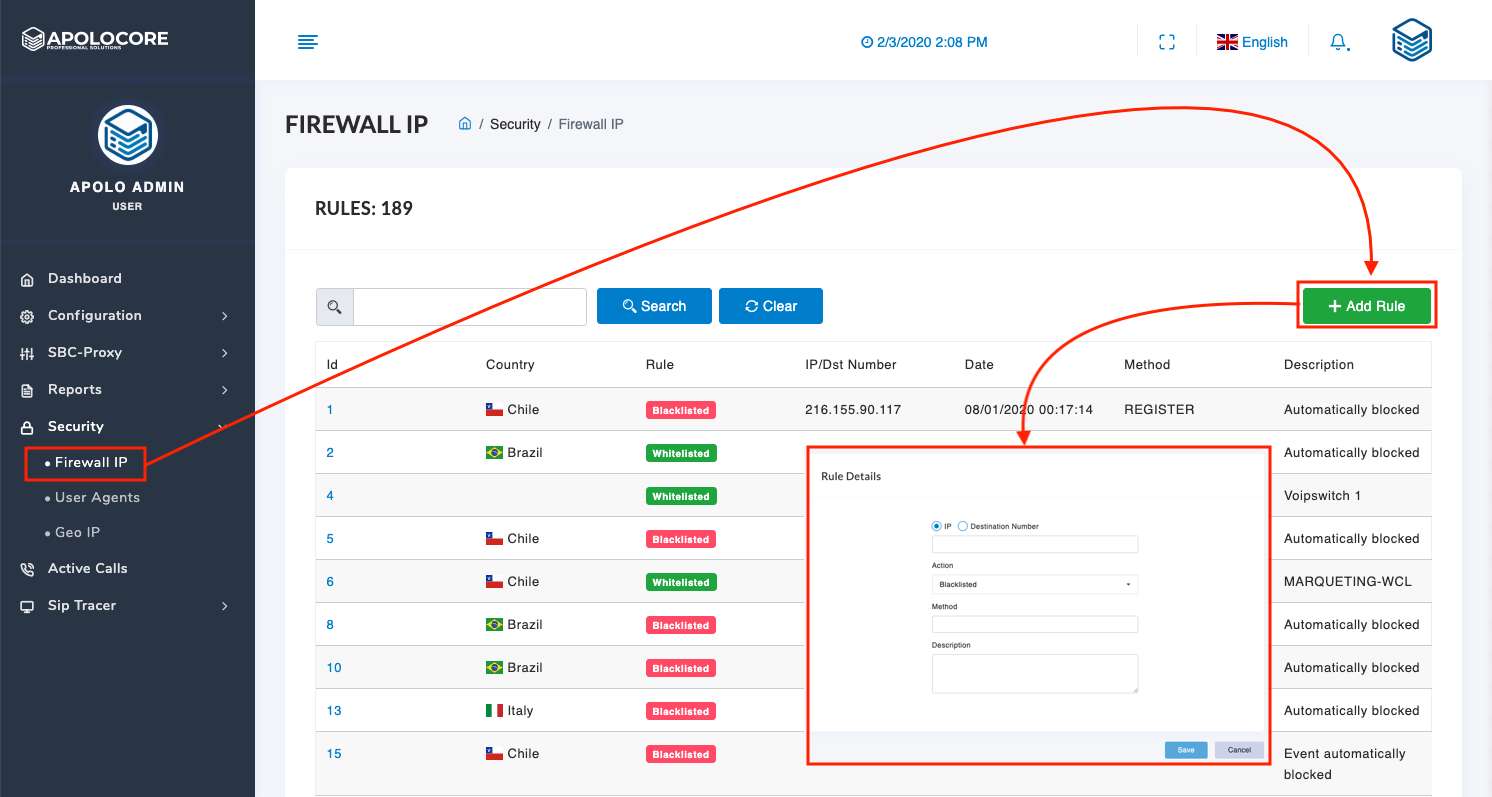

In the Security Menu / IP Firewall, the IPs that have been blocked by LEVEL 1 are displayed automatically. The system will show the IP address and the country to which it belongs.

Additionally, you can add rules for white list and black list by pressing the ADD Rule button.
